Basys3 Supercar Single

    This example is also available as:
  • Working code in the directory basys3_supercar_single within the bmexamples repository

In this example, we will create a simple optical effect with the leds of the Basys3 board. This consists of a single switched on led that moves from left to right and back again. The name of the example is supercar in honor of the famous car from the TV series Knight Rider.

The example is built around a single BondMachine cp that drives the leds. The cp code is implemented in basm and is located in the file test.basm, which is as follows:

%section kittsingle .romtext iomode:async
        entry _start    ; Entry point
_start:
    rsets16 r3,1 ; initial led position, r3 holds the led pattern as 16 bit register
    rsets16 r4,0 ; direction - 0=left , otherwise=right
wait:
    rsets16 r0, 10000 ; wait time1
    rsets16 r1, 1000 ; wait time2
    call8s sleep ; call sleep from the library
    jz r4, goingl ; check direction and jump accordingly
goingr:
    cir r3 ; shift right
    jz r3, setl ; if r3 is zero, set direction to left
    j print
setl:
    rsets16 r4,0 ; set direction to left
    rsets16 r3,1 ; set r3 to first led
    j print
goingl:
    cil r3 ; shift left
    jz r3, setr ; if r3 is zero, set direction to right
    j print
setr:
    rsets16 r4, 1 ; set direction to right
    rsets16 r3, 32768 ; set r3 to last led
    j print
print:
    mov o0, r3 ; move led pattern to output
    j wait
%endsection

The comments in the code explain how it works. The cp code uses a simple algorithm to move a single bit left and right across a 16-bit register, which is then output to the leds.

The basm metadata is located in the file test.bmeta and describes the cp and its peripherals:

%meta cpdef cpu1 romcode: kittsingle
%meta bmdef global  registersize:16, mapclk:clk, mapreset:btnC
%meta ioatt bond1 cp: bm, index:0, type:output, mapfrom:0, mapto:15, mapname: led
%meta ioatt bond1 cp: cpu1, index:0, type:output

To build and run the example, use the following commands within the example directory:

make apply
make program

This will compile the cp code, generate the necessary files, and program the Basys3 board. Once programmed, you should see a single led moving back and forth across the led array on the board, creating the desired optical effect.

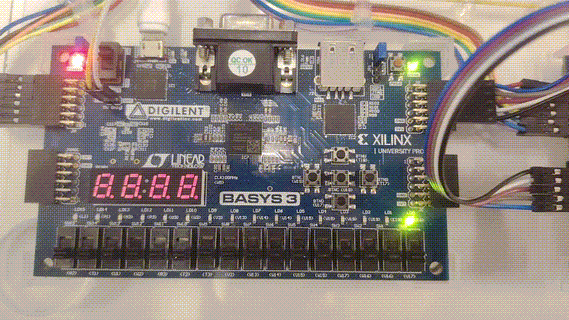

Basys3 Supercar Single Board Example
