Zora

Zora is the codename for the second BondMachine prototype, the first with a monitor and a keyboard. It is based on a Basys3 evaluation board. To build it you also need a 3D printer and a tool to cut and engraving the plexi.

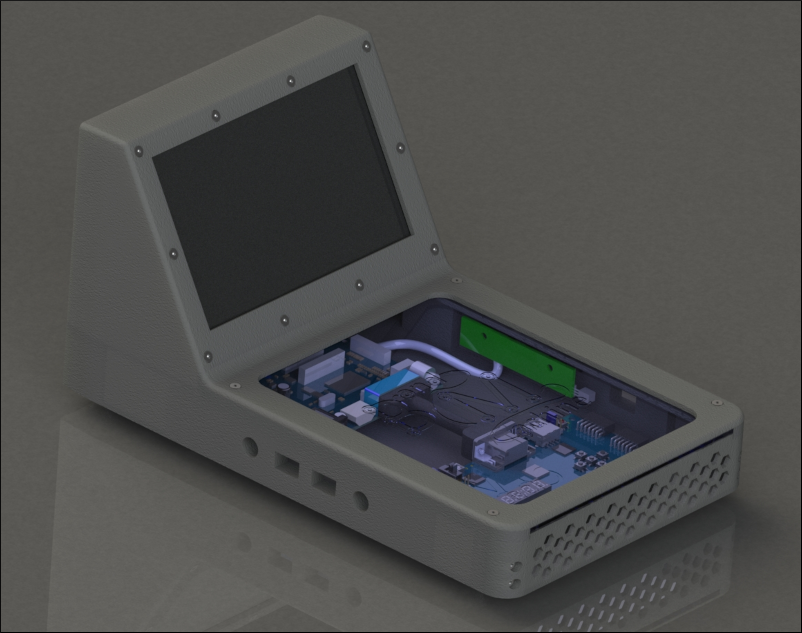

The result of the process will be something like this:

Zora
Zora

Shopping list

Description Photo
Digilent Basys3 Basys3
7 inch VGA HDMI monitor (like the 7300101463 E231732) Monitor
An USB (power) to jack female (5.5mm - 2.1mm) Usb power
A couple (male female) of jack connector (5.5mm - 2.1mm) Jacks
An usb type A female to micro USB male (10 cm) USB micro
An usb type A female to male (10 cm) USB male to female
Some spare wire Wires
A short VGA cable (3cm) or eventually 2 male VGA connectors to solder it VGA
A 2 pin dupont female connector Dupont
Some 3D printer silk Silk
Some plexiglass (3mm) and a tool to cut and engraving it Plexi

Howto

Connections

3D printed case

The 3D case of zora can be downloaded as sigle tgz file with all parts.

Rendering Step files bundle
All files All 3D models

Or each model separately.

Rendering Step file
Cover Frame Cover Frame
Cover Support dx Cover Support dx
Cover Support sx Cover Support sx
Front Grid Front Grid
Main Case Main Case
Plexi Cover Plexi Cover
Screen Back Screen Back
Screen Cover Screen Cover
Screen Support dx Screen Support dx
Screen Support sx Screen Support sx

Thanks

Many thanks to:

  • Cristiano Turrioni (3D Design)
  • Giacomo Surace (Printing)
  • Igor Neri (Engraving)
